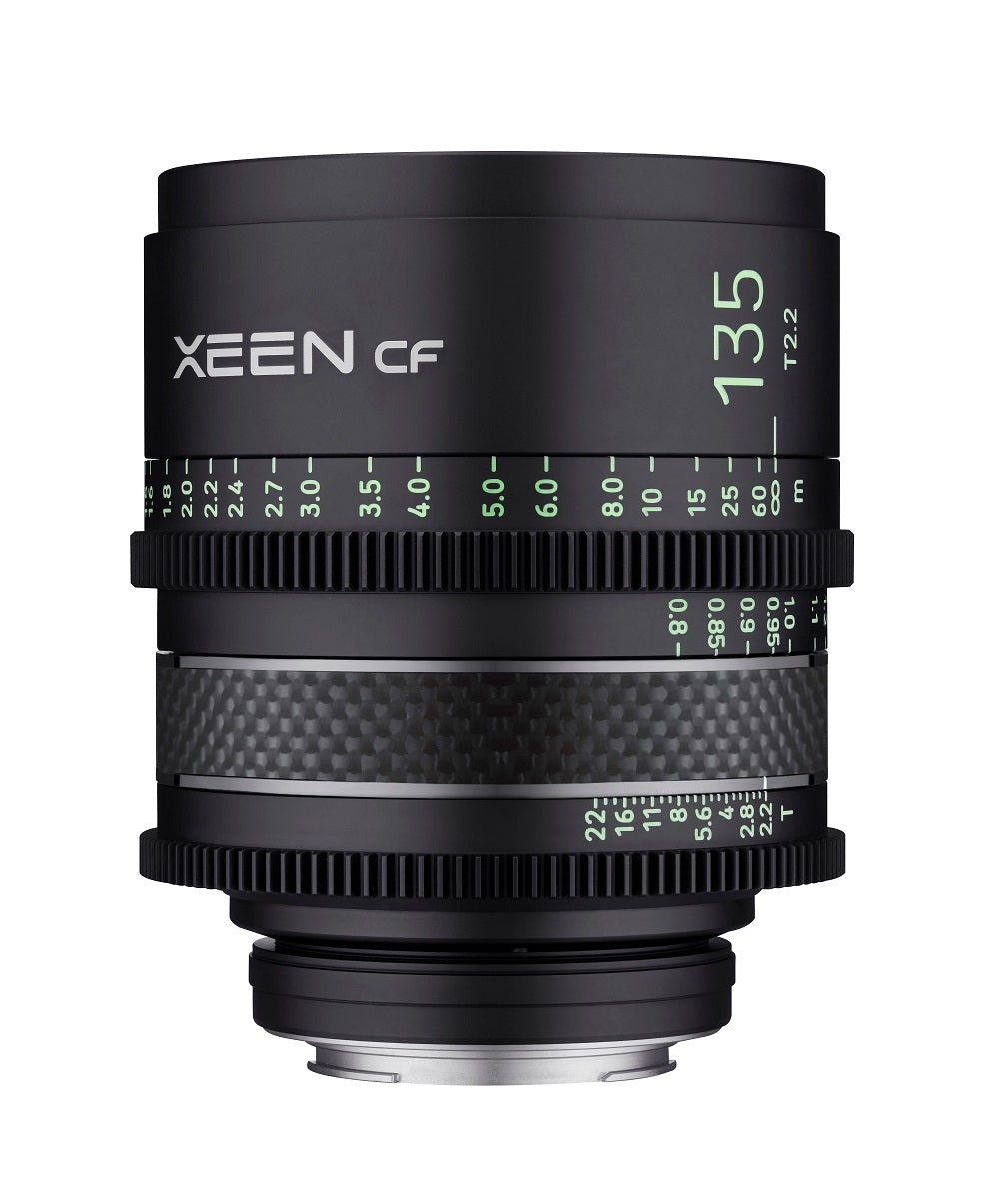

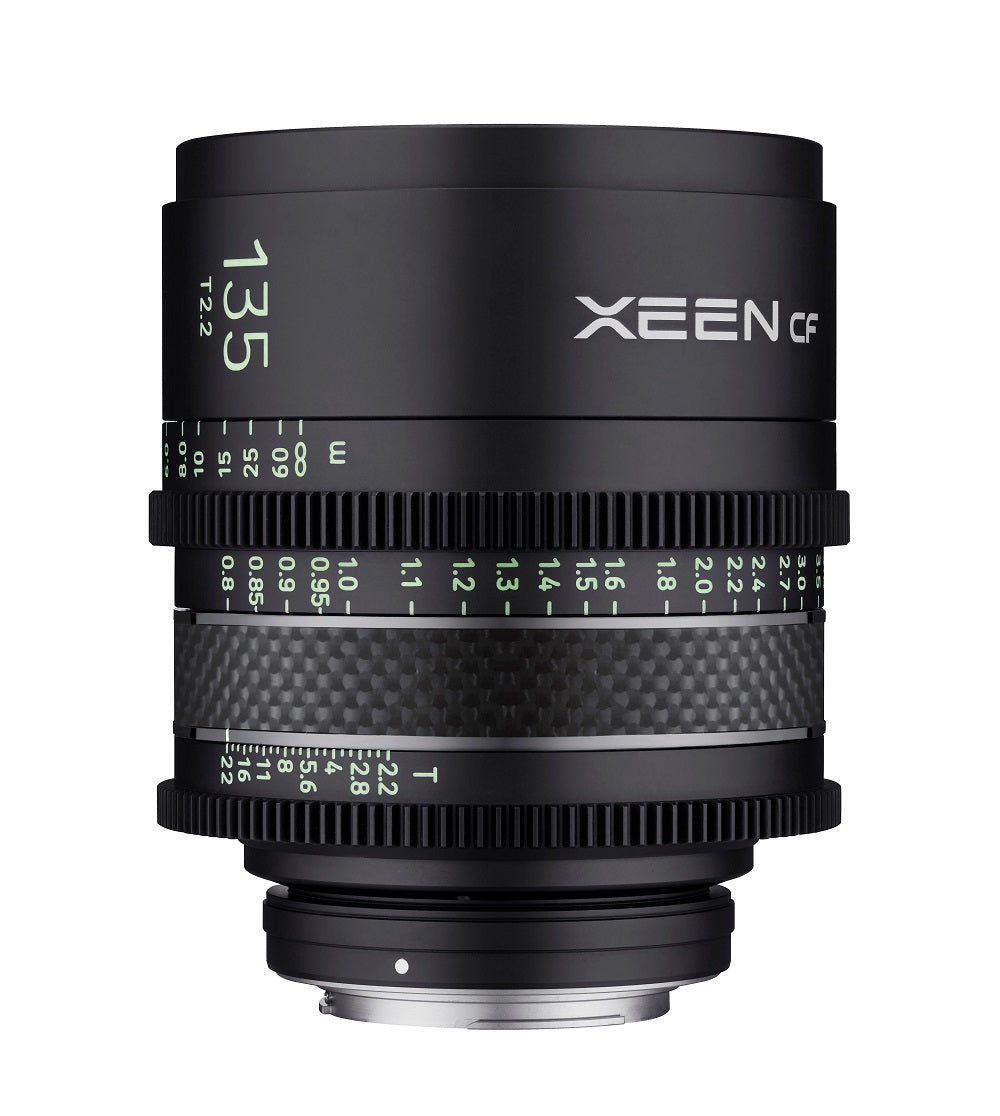

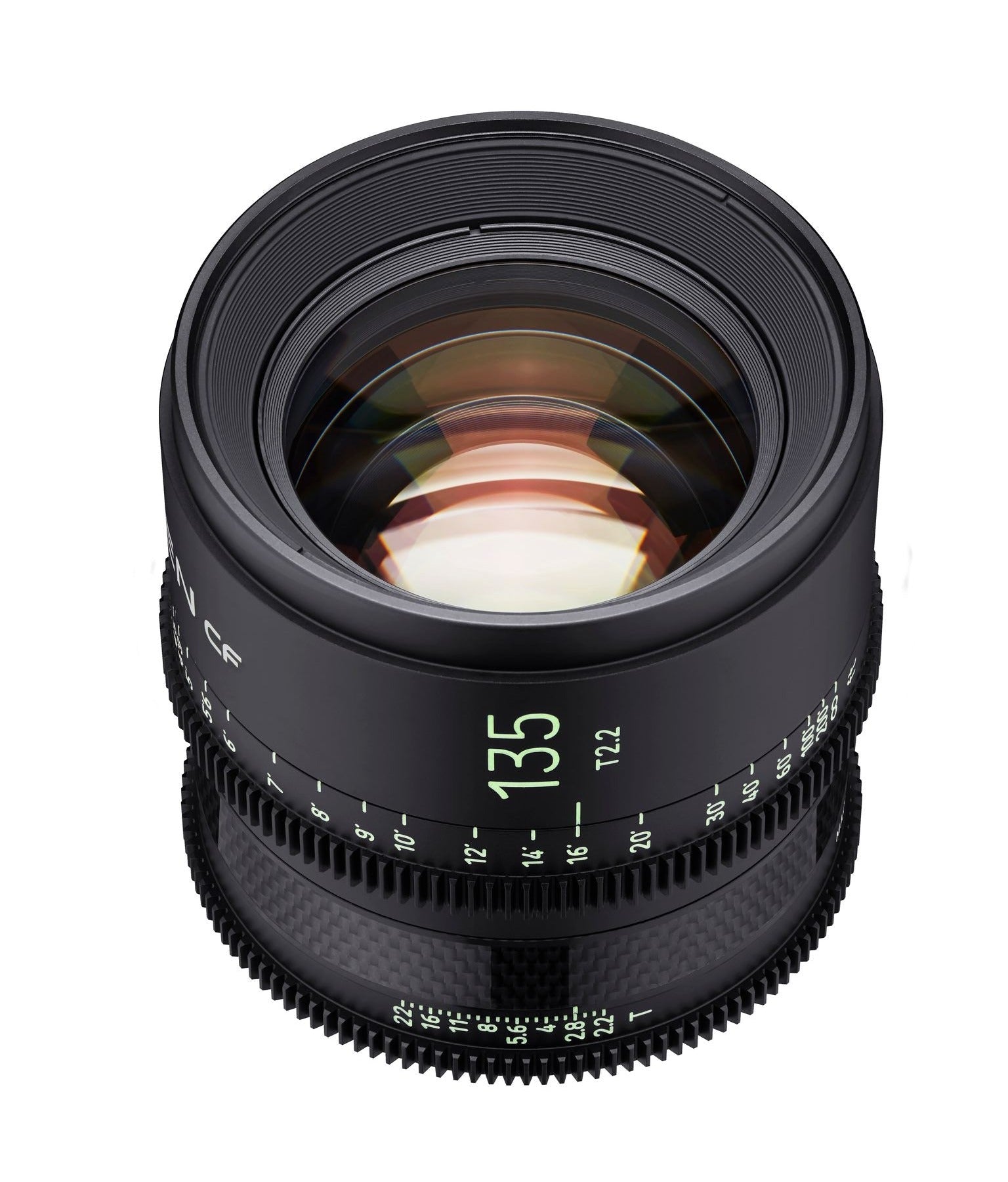

Samyang XEEN CF 135mm T2.2 Cine
XEEN CF
Compact & Flexible cine prime lens
with six focal lengths compatible
with the latest cameras of PL, Canon EF and Sony E mount
16mm T2.6 | 24mm T1.5 | 35mm T1.5 | 50mm T1.5 | 85mm T1.5 | 135mm T2.2
Why XEEN CF
XEEN CF Cine Prime lenses are ultra-lightweight, high performance cine prime lenses for large image sensors.
In order to cope with changes in the imaging environment where the equipment becomes smaller and lighter, the XEEN CF R&D team started an innovation from the basic materials of the lens.
Carbon Fiber is widely used in the aviation and automotive industry for its light and robust properties, but it is difficult to mold and therefore has not been utilized in the highly precise optics industry.
Researchers selected Carbon Fiber as the main material to maintain robustness and reduce lens weight. After years of efforts to shape fibers into specific shapes and sizes and graft them into sensitive and fragile glass parts, we have finally made carbon fiber usable for XEEN CF.
The use of carbon fiber in the exterior reduces unnecessary weight and enhances rigidity. Less than 1kg (0.9lbs) of lightweight body can flexibly respond to various shooting environments and capture various images including weight-sensitive equipment such as drones and gimbals.
With its outstanding resolution that supports 8K and its unique X-Coating Technology, it expresses performers’ delicate emotions in full detail.
The bright aperture of the T1.5 delivers beautiful bokeh, shallow depth of field and excellent low light performance.
Winning the award at the German iF Design Award for its ease of use, XEEN CF is also well-received for its futuristic design.
Carbon Fiber - Compact & Flexible
By applying carbon fiber, which is lighter than metal but solid and beautiful, to the lens body tube, it remains lightweight while maintaining durability.
It is designed to be small and light so it can be mounted on numerous cameras and used more flexibly in a variety of environments.
8K & Cinematic look
It has the outstanding resolution supporting a large image sensor and 8K. Additionally, it offers beautiful bokeh with a bright T1.5 aperture and maximize the delicate emotions of people while richly depicting the shot.
X-Coating
By applying our proprietary X-coating technology, it effectively controls the reflection of light inside and within the lens itself to create a distinctive look. Properly utilizing flares and ghosting, you can create dramatic effects.
Outstanding Usability
The front aperture (95mm), focus, and aperture ring gear positions are unified, making it easy and convenient to attach and detach lens accessories such as Matte Box and Follow Focus. In addition, the ultra-bright luminous font allows for convenient use in dark environments.
Dramatic Portraits
XEEN CF, compatible with the latest Digital Cinema Camera, can express the dramatic emotions of a performer in a rich and delicate manner.
Crystal Clear Resolution
Optimized for the latest image sensors and seamlessly compatible with the latest cameras. Supporting 8K, XEEN CF delivers superior resolution for more vibrant landscapes and detailed depictions.
Sharp and Rich Image
Excellent sharpness and color optimized for skin tone shows excellent results with subtle emotional expression.
Dimensional Look
Sense of depth is expressed more freely, allowing you to shoot images with excellent sense of dimensionality and space. Increase the focus on the main performers and the beautifully blurred background adds to the beauty of the image.
Cinematic Halation Effect
Proprietary X Coating technology effectively controls flares and ghosting while reducing unwanted light reflections providing a halation effect for dramatic expression.
1. Ø95 Front Size
Designed to 95mm standard front diameter size it is compact in size and easily compatible with Matte Box
2. Carbon Fiber
Carbon fiber is applied to part of the body tube, making it both light and durable
3. Compatible with the large image sensors
Compatible with the latest cameras that adopt large image sensors such as Full Frame, Large Format, and Vista Vision
4. PL, EF, E mount
Three mount options for mounting on a variety of cameras * LPL mounting is available when using an adapter.
5. 11 sheet aperture
11 sheets are applied for bokeh close to original and beautiful background blur
6. X-Coating
Provides a distinctive look by controlling internal reflection, flare, and ghosting, and produces dramatic images
7. Luminous font
All scales, including focal length and aperture values, are treated with bright fluorescent paint for convenient use, even in low light environments
8. Improvement of Focus, Aperture Gear usability
Focus ring and aperture ring locations are uniform across all models, gear design and weight were improved for rotation
9. Wide Focus Gear rotation angle
200 ° wide angle of rotation enables fine focus adjustment
10. Bidirectional Scale
The focus and aperture values are displayed on both sides of the lens, enabling easy verification and operation from either side
Specifications
Maximum T-stop: T2.2
Image Circle: Ø 43.2mm
Angle of View Full Frame: 18.8°
Angle of View Super 35: 13.6°
Focusing range: ∞ to 0.80 m
Front Diameter: Ø 95 mm
Number of Aperture blades: 11
Rotation angle of Focus Ring: 200°
Rotation angle of Aperture Ring: 35°
