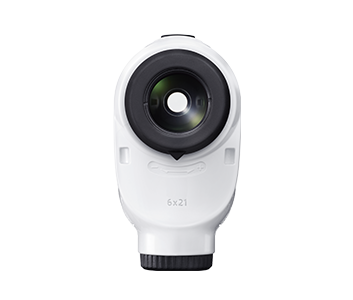

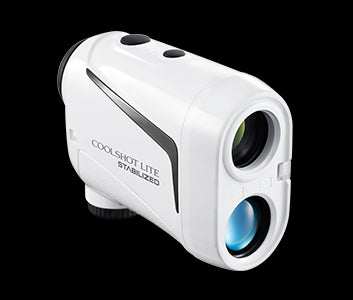

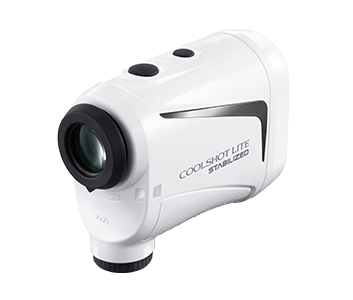

Nikon Coolshot Lite Stabilized Laser Rangefinder

NAIL THE SHOT

Experience a calm and steady view of the course during those high-pressure moments thanks to Nikon’s STABILIZED technology. With HYPER READ and slope adjustment, you can explore options for your shots without slowing down play.

A STEADY VIEW Featuring innovative technology from Nikon’s imaging products, the COOLSHOT LITE STABILIZED steadies your view by reducing hand shake and environmental factors. Finding your target is easy - just lock on and play.
	FAST, PINPOINT ACCURACY The built-in HYPER READ technology gives quick and reliable measurements (in approx. 0.3 seconds), comfortably visible within the LCD display. Think more about your next shot without slowing your game.
CHOOSE SLOPE-ADJUSTMENT When playing for leisure you can turn on ID (incline/decline), which will factor in slope, crucial for uphill and downhill shots. Alternatively, use the Actual Distance Indicator, which signals compliance for competitive play.
	LOCKED ON The LOCKED ON function informs you of the distance to the closest subject, helping you target the pin and not a tree that might be in the background.
UNDERSTAND THE TERRAIN Gauge real-time and accurate distances of trees and other hazards which might be in your way with the single or continuous measurement functions.
	WEATHER FRIENDLY A little bad weather never stopped play, and it certainly won’t stop the COOLSHOT LITE STABILIZED. The rainproof rangefinder can withstand a range of conditions.
LIGHT AND COMPACT The lightweight rangefinder is small enough to fit in your pocket, weighing just 170g. You have enough heavy kit to carry – this won’t weigh you down.
	COMPETITIVE PLAY The Actual Distance Indicator LED lets your competition know that the ID technology mode is not in use, when slope-compensation is prohibited.

Specifications

Measurement range (actual distance) : 7.5-1,090M

Guide for maximum measurement distance to a flagstick* : 450M

Distance display (increment) : Actual Distance (Upper):Every 1M/Yd, Actual Distance (Lower):Every 0.5M/Yd, Slope Adjusted Distance (Lower):Every 0.2M/Yd,

Accuracy** (actual distance) : ±0.75M/Yd (Shorter Than 700M/Yd), ±1.25M/Yd (700M/Yd. And Over, Shorter Than 1,000M/Yd), ±1.75M/Yd (1,000M/Yd. And Over)

Magnification (x) : 6

Effective objective diameter (mm) : 21

Actual field of view (°) : 7.5

Exit pupil (mm) : 3.5

Eye relief (mm) : 18

Diopter adjustment : ±4 M-1

Dimensions (LxHxW) : 96 X 74X 41Mm

Weight (excluding battery) : Approx.170G

Operating temperature : -10 — +50°C

Operating humidity (%RH) : 80 Or Less (Without Dew Condensation)

Power source : Cr2 Lithium Battery × 1 (Dc 3V). Automatic Power Shut-Off (After Approx. 8 Sec. Unoperated)

Waterproof structure : Rainproof — Jis/Iec Protection Class 4 (Ipx4) Equivalent (Under Nikon’S Testing Conditions)

Laser classification : Iec60825-1: Class 1M/Laser Product, Fda/21 Cfr Part 1040.10: Class I Laser Product

Electromagnetic compatibility : Fcc Part15 Subpartb Class B, Eu:Emc Directive, As/Nzs, Vcci Classb, Cu Tr 020, Ices-003

Environment : Rohs, Weee

Wavelength (nm) : 905

Pulse duration (ns) : 9.7

Output (W) : 33.8

Beam divergence (mrad) : Vertical: 0.25, Horizontal: 1.8

Battery Life : Approx. 2,400 Times (At Approx. 20°C). *This Figure May Differ According To Conditions Such As Temperature And Other Factors. Use Only As A Guide.
